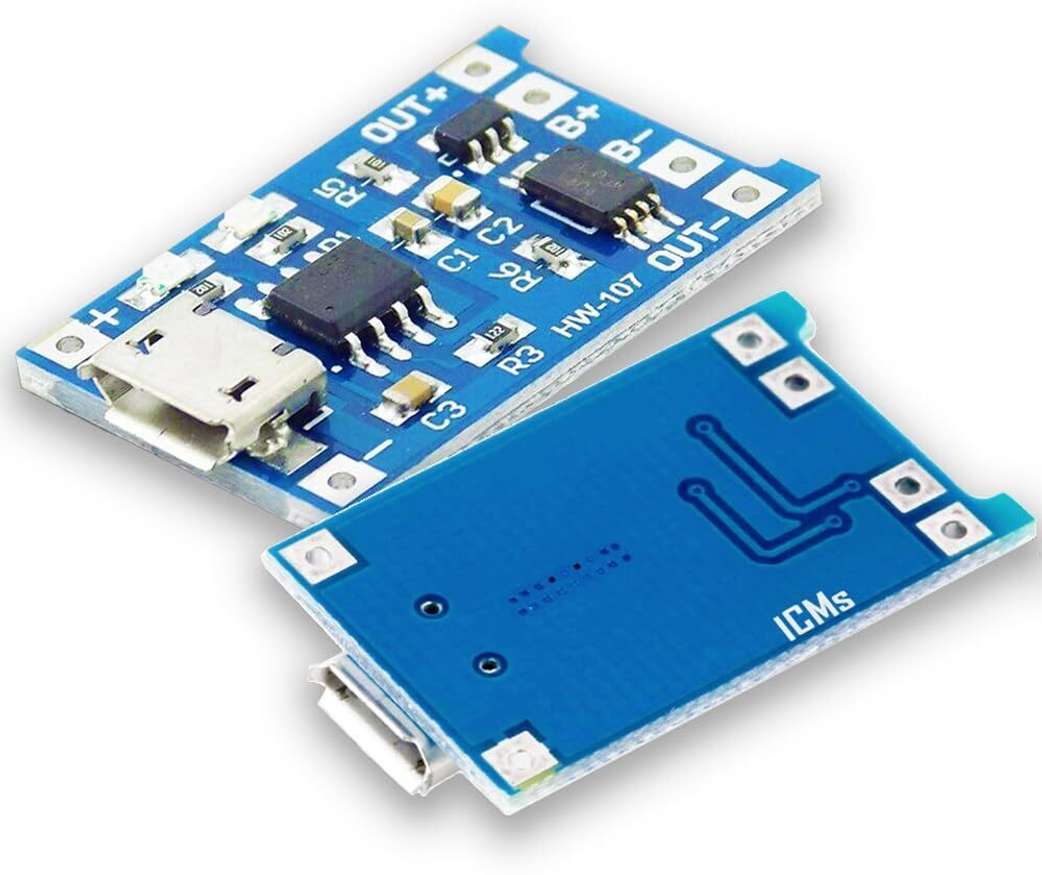

1 x TP4056 - Battery Charging/Protection Module (Micro USB)

Maxwell

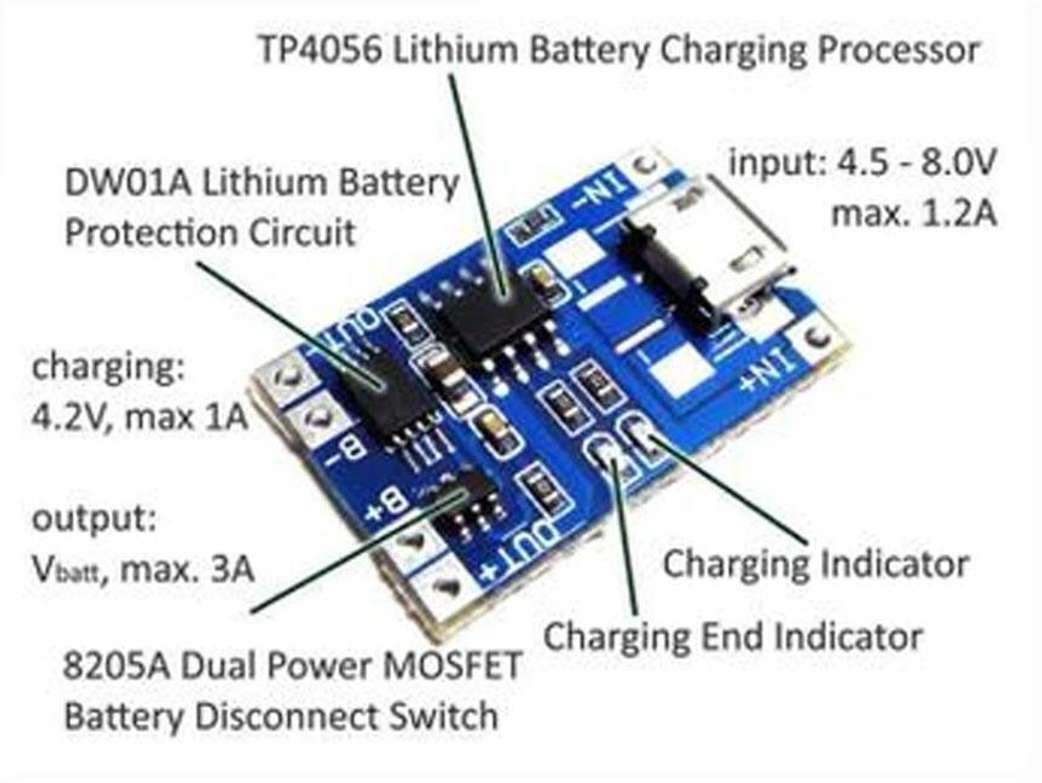

TP4056 - Battery Charging/Protection Module (Micro USB)

Electronic Components

12

No

Epoxy

Reverse Polarity Protection (Optional) With external components, the TP4056 can be configured to protect against reverse polarity, ensuring the safety of the connected battery., Auto-recharge Function Automatically resumes charging when the battery voltage drops below a preset threshold, ensuring the battery stays charged without manual intervention., Thermal Regulation The module features dynamic thermal regulation, which adjusts the charging current to prevent overheating during operation., Low Standby Current The TP4056 consumes very little power in standby mode, reducing energy waste when not actively charging., Automatic Trickle Charging When the battery voltage is low, the module begins with a trickle charge at a low current to protect the battery from damage before switching to higher current as the voltage increases., Battery Disconnect Protection In cases of over-discharge, the protection circuit automatically disconnects the battery to prevent damage, extending battery life.

1 cm

1 cm

1

20

16+ Years

NA

NA

DC

5

No

No Warranty

NA

NA

NA
