2

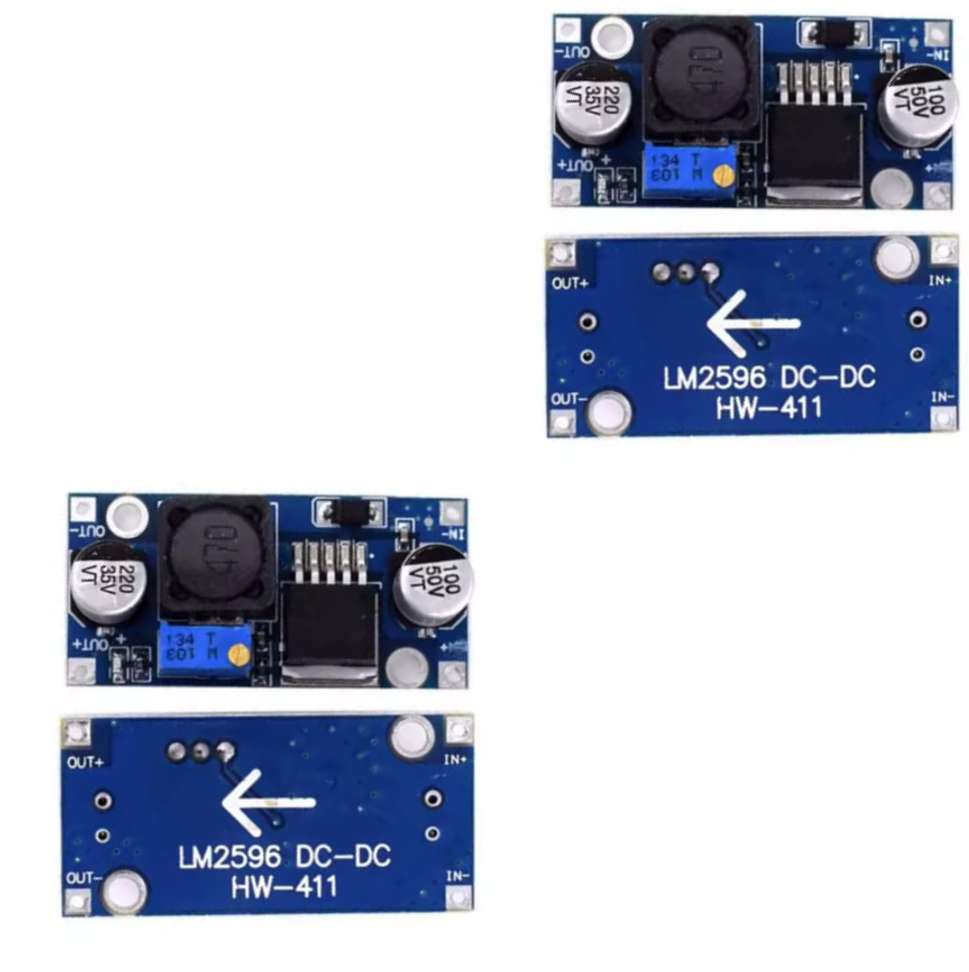

2 nos lm2596 buck converter

Monolithic Power Systems

967564548

Assembled Double Sided

battery operation, DIY projects

2.1 x 4.3 x 1.3 cm

Fiber

Plastic

Yes

No

Through-hole Mounted

4V – 40V DC

2 PCBS

High-efficiency LM2596 DC-DC buck converter with adjustable output (1.25V–37V), 3A current support, and stable performance — perfect for Arduino, robotics, and DIY electronics projects.

Product Type: DC-DC Step Down (Buck) Converter Module, Model: LM2596, Input Voltage: 4V – 40V DC, Output Voltage: 1.25V – 37V DC (Adjustable), Conversion Efficiency: Up to 92%, Regulation Type: Switching Regulator, Switching Frequency: ~150 kHz, Output Ripple: < 30mV (Typical), Protection Features: Short Circuit Protection Thermal Shutdown Current Limiting, Module Type: Non-Isolated Buck Converter, Operating Temperature: -40°C to +85°C, Dimensions: Approx. 45mm × 20mm × 14mm, Adjustment Method: Multi-turn Potentiometer, Applications: Arduino, ESP32, Robotics, LED Drivers, Battery & Solar Systems, DIY Electronics, 4V–40V IN → 1.25V–37V OUT | 3A | 92% Efficiency

0.5 cm

2.1 cm

10 g

4.3 cm

43mm x 21mm x 14mm
