Logic NOR Gate Circuit IC 7402 Based Science Project

ERH India

Logic NOR Gate Circuit IC 7402 Based Science Project Working

Educational

No

Plastic

10 cm

1.5 cm

67

9v Battery

1

NA

Battery

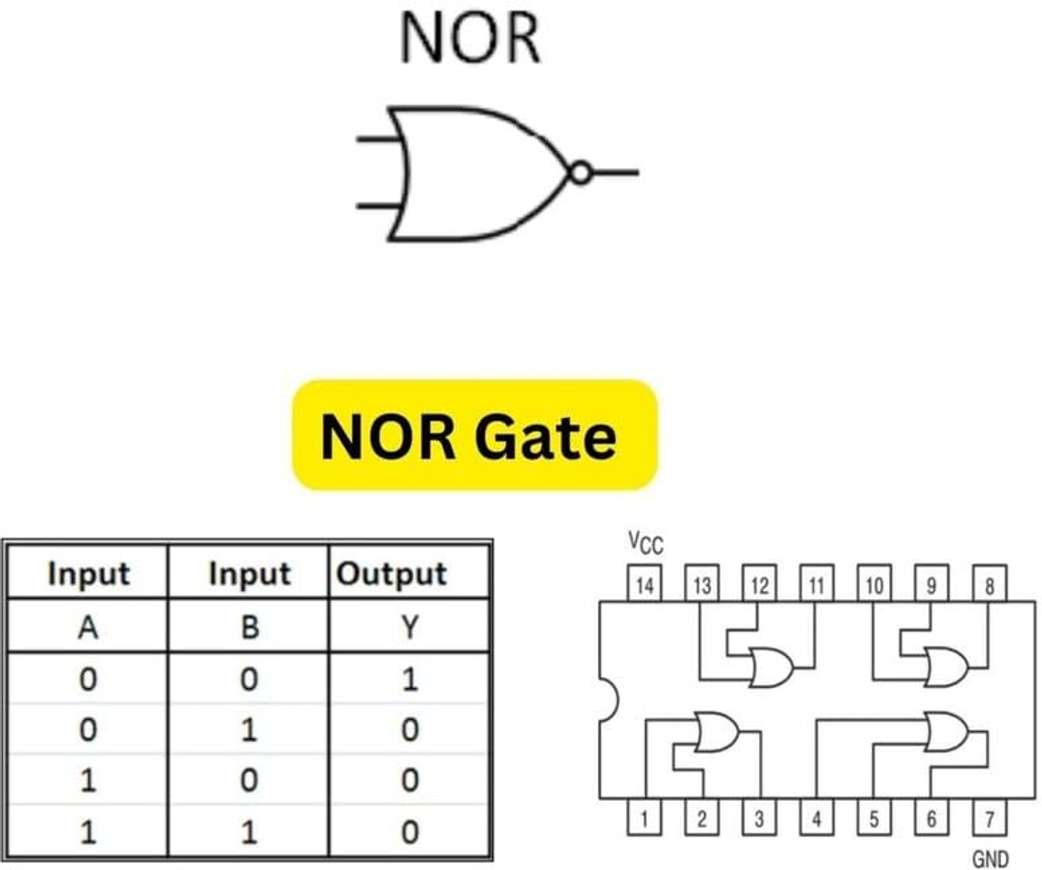

A NOR gate can have two or more inputs and gives an output. A NOR gate gives a high or logic 1 output only when its all inputs are low or logic 0., The Boolean expression of a two input NOR gate is given below: C= A+B. We can extend this expression to any number of input variables. In the above Boolean expressions, the variables A and B are called input variables while the variable C is called the output variable., Explore the fascinating world of digital circuits with hands-on experiments using real logic gates! (e.g., AND, OR, NOT), Learn by Doing: Build working circuits and discover how logic gates process information, the foundation of all modern computers., STEM Focused: Develop critical thinking, problem-solving, and engineering skills through engaging science, technology, engineering, and math (STEM) activities.
